fix(scan): audit graph draws immediate dependencies, not the soldeer closure

[thedavidmeister]

The defect

graph_edges() drew one edge per [dependencies] entry. Soldeer does not
resolve transitive dependencies, so an org manifest declares the FULL closure —
a consumer must declare every package its dependencies' own internal
rain-solmem-0.1.3/... imports resolve through, whether or not its own code
ever imports them. The audit graph therefore drew transitive edges as if they
were direct: rain.verify showed 16 first-party outgoing edges when its own code
imports 6 first-party packages; edge count tracked manifest size, not usage.

The fix — immediacy from data, never from graph shape

An edge from → to survives iff a file in from's OWN tree imports to's
package prefix.

• Own tree is the shared not-vendored property (untested::is_vendored):
  everything outside top-level lib/, dependencies/, node_modules/, out/
  and cache/ — src/, script/ and test/ in the org's layout, without
  dropping own code that lives elsewhere. A vendored file's imports are its own
  package's dependencies resolving through the consumer's remappings — counting
  them would re-admit the exact closure this cuts.
• Imports are AST-parsed (solang_parser::parse), so a commented-out
  import or an import-shaped string literal is not a use. A file the grammar
  rejects (solang can lag solc syntax) still lexes; a token-stream fallback
  reads import … one string literal … ; rather than silently dropping a
  real direct edge.
• The prefix matches a package by exact name or <package>- + a
  leading-digit version — never hyphen-splitting, so rain-math-float-0.0.1
  is not a use of rain-math, while pre-release
  rain-math-float-0.0.1-alpha.5 is one of rain-math-float. Deliberately
  version-agnostic: an import pinning an older path than the manifest is still
  a direct use, and version/stale data on surviving edges keeps coming from
  the manifest exactly as before (Dependency graph ignores pinned versions — a stale pin's transitive closure can differ from what's drawn #79 semantics untouched).
• This is NOT transitive reduction. A package imported directly AND
  reachable through another dependency keeps its edge (everything imports
  solmem); a test asserts precisely that. Immediacy is decided from the imports
  that exist, never from the shape of the graph.
• Unknown stays typed and loud. Declared dependencies + unreadable tree =
  the same deps_known: false state an unparseable manifest yields (typed
  DepsResolution, ::warning in the scan log), never a silent keep-all or
  drop-all. A manifest declaring nothing needs no tree to confirm it. The site
  label now says which ("deps unknown — manifest or tree unreadable") — the
  only site change; the data shape is unchanged.
• Scan cost: zero additional requests. The prefixes are collected from the
  same shallow-clone walk untested::analyze already does. No coverage bound
  was added anywhere; nothing is skipped silently.

Verification: two full 4-org scans, same token, same minute

The hourly cron's committed site/health.json is NOT a fair baseline here: it
runs with a token that sees only public repos, while a local scan sees the
private ones too (st0x.atomic-bridge, st0x.bebop, st0x.univ4.hook, dvin.poc
have no node in it at all). So the baseline below is master's own binary
built and run locally (same token, same ORGS="rainlanguage cyclofinance S01-Issuer ST0x-Technology"), 11 minutes apart from the branch scan.

• Node sets: identical, 47 Solidity repos.

• Edges: 190 → 115 (−75). Strict subset: zero edges in AFTER that are
  not in BEFORE.

• 33 of 47 repos unchanged — a repo already declaring only what it imports
  (e.g. rain.deploy) is untouched. The 14 that changed, all decreases:

  repo	before	after
  rain.verify	16	5
  raindex	14	9
  rain.dia	14	8
  rain.erc4626.words	14	5
  rain.flare	14	6
  rainlang	14	12
  rain.merkle	14	4
  rain.pyth	14	6
  st0x.deploy	10	8
  rain.vats.flare	8	3
  st0x.atomic-bridge	7	1
  st0x.oracle	5	4
  rain.extrospection.deploy	3	2
  rain.tofu.erc20-decimals	3	2

• Ground truth, checked against fresh clones rather than the scan's own output:

  • rain.verify owns imports of exactly 6 first-party packages
    (rain-factory, rain-verify-interface, rain-deploy,
    rain-interpreter-interface, rain-solmem, rain-sol-codegen). Five map
    to graph nodes = the 5 kept edges. The sixth, rain-interpreter-interface,
    is the LEGACY name of today's rainlang-interface (repo
    rainlang.interface) — no node publishes the old name, so it drew no edge on
    master either. Pre-existing, unchanged by this PR, noted for follow-up.
  • rain.merkle imports 4 node-mapped packages → exactly its 4 kept edges;
    rain.erc4626.words imports 5 → exactly its 5. st0x.atomic-bridge
    declares 7 first-party packages and imports exactly one
    (rain-math-float-0.1.1) → its 1 kept edge; the other 6 are entries no
    import justifies.

blockedBy — identical for 45 of 47 nodes, and the two diffs are the fix working

Reachability over direct edges equals reachability over closure edges whenever
every closure entry really sits beneath some direct dependency — a unit test
asserts blocker sets are unchanged in that case. The two live diffs are repos
whose manifests carry dead entries (declared, imported nowhere, and beneath
no kept dependency either):

• rain.verify 12 → 4. It declares rainlang = "0.1.2" and imports it
  nowhere. The 8 lost blockers are exactly rainlang plus rainlang's own
  unaudited subtree (rain.datacontract, rain.extrospection,
  rain.lib.memkv, rain.math.float, rain.metadata, rain.string,
  rain.tofu.erc20-decimals) minus what stays reachable through kept edges
  (rain.deploy, rain.sol.codegen, rain.solmem all remain).
• st0x.atomic-bridge 15 → 6. Six of its seven declared first-party entries
  are imported nowhere in its own code. What remains is precisely
  rain.math.float + rain.math.float's subtree (rain.datacontract,
  rain.deploy, rain.sol.codegen, rain.solmem, rain.string) —
  rain.math.float's manifest and imports confirm that subtree exactly.

Master asserted these repos stand on ground their code does not touch. The
manifests still carry the dead entries (the scan is not a linter for them);
the graph just stops drawing them as dependencies.

Before / after renders

Same page (site/audit.html), same scan universe, only the binary differs.
The closure thicket collapses to the direct graph; the headline "11 of 47 …
clear ground" is unchanged; most-inherited moves only where the blockedBy
shrinks predict (rain.factory 7 → 6 inherit; rain.solmem 28 and
rain.sol.codegen 25 unchanged); per-repo stale-deps lists shrink in step with
their dropped edges (rain.merkle 8 → 2).

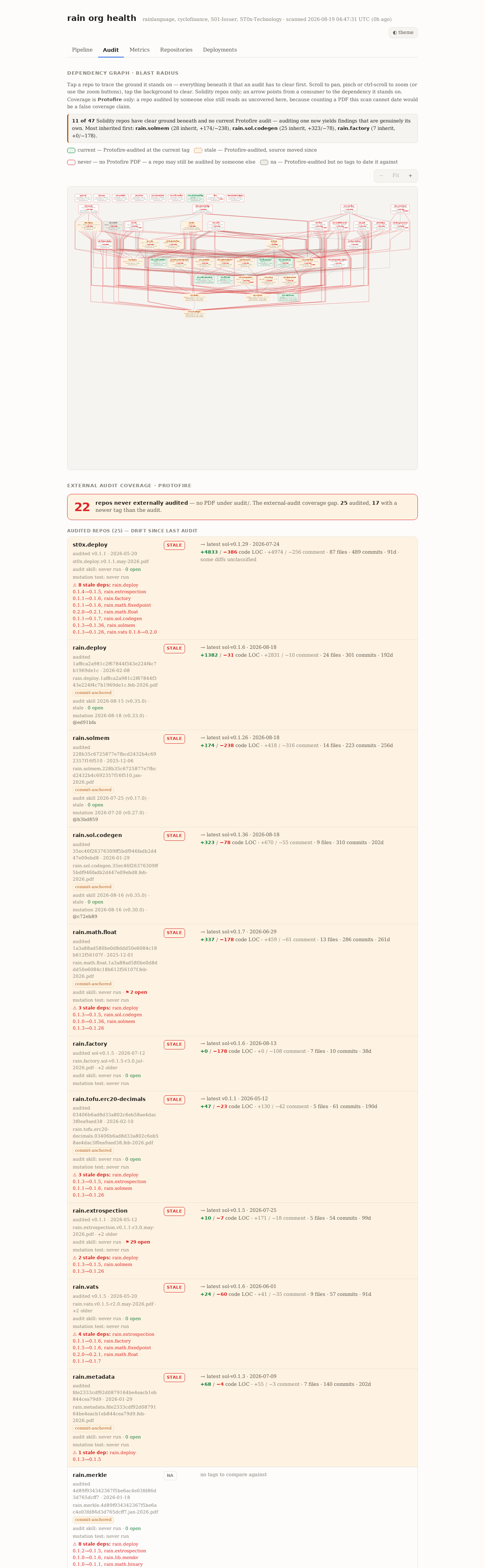

Before (master binary, fair local baseline):

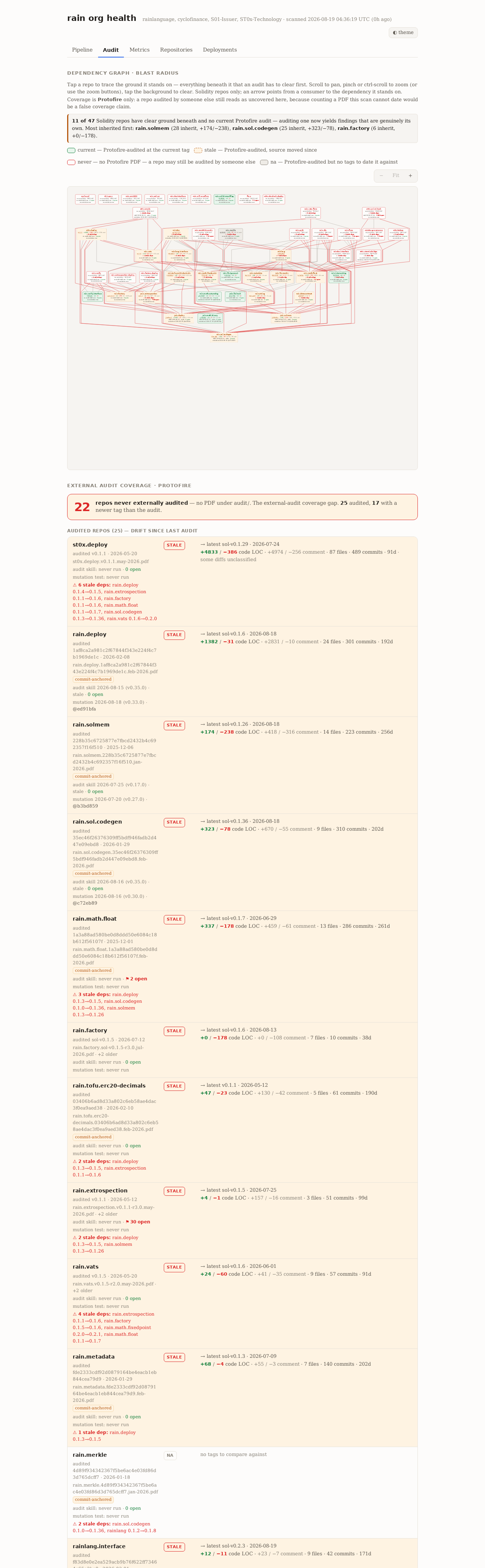

After (this branch):

QA

• Discriminating tests: 12 new tests ship with the fix, covering every
  acceptance case: closure entry dropped, direct entry kept,
  direct-AND-transitively-reachable entry kept (NOT-transitive-reduction),
  unknown-tree repo handled (typed, flagged), blockers unchanged vs closure
  edges, AST-vs-comment discrimination, grammar-rejected file fallback,
  version-vs-name-extension prefix matching, and the two survivor-killers
  below.
• Mutations applied: 18 authored over the new logic (sol_import_paths,
  imported_prefixes, import_package_matches, immediate_deps,
  resolve_node_deps) — one behavior each. Probe pass 1: 16 killed, 2
  survived. Survivors got a discriminating test each and were re-probed to
  KILLED; final matrix 18/18 killed, 0 no-run, 0 harness errors, with the
  suite's own tally (233 baseline / 235 after the new tests) proving every run
  ran:
  • M04 (lexer fallback keeps collecting past the import's ;) — killed by
    the_lexer_fallback_stops_at_the_imports_semicolon: a grammar-rejected
    fixture with import X; followed later by the string
    "phantom-9.9.9/x.sol", which must NOT be collected.
  • M07 (empty prefixes enter the set) — killed by
    an_empty_or_absolute_import_contributes_no_prefix: import ""; and
    import "/abs/X.sol"; contribute nothing.
    Attribution is by construction: the 233-test suite let both live; the only
    delta in the killing suite is the two new tests.
• Oracle: the org's versioned-import convention (a direct use appears as
  import … from "<package>-<version>/…" in the consumer's own files) and
  live repos, not the implementation: rain.verify / rain.merkle /
  rain.erc4626.words / st0x.atomic-bridge clones grepped independently, plus
  the fair master-binary scan for the graph-level deltas above.
• Category check: the ask was immediate-only edges decided from data, with
  the named knock-ons checked — blockers (test + live proof above),
  standsOn() tap-highlight (walks the same g.edges transitively; unchanged
  argument, verified against the render), stale-pin Dependency graph ignores pinned versions — a stale pin's transitive closure can differ from what's drawn #79 semantics on surviving
  edges (manifest remains the source; visible in the renders' stale lists),
  and the unreadable-tree state (typed, mirrored from the unparseable-manifest
  state, mutants M12/M16/M17/M18). Transitive reduction explicitly rejected
  and tested against.

Suite: nix develop -c cargo test -p roh-scan → 235 passed / 0 failed.
pre-commit run --all-files clean (rainix static toolchain = CI).
nix run .#dashboard-test → 264 passed / 0 failed.

Summary by CodeRabbit

• Improvements
  • Dependency graphs now show only immediate, directly imported dependencies.
  • Solidity imports are detected more reliably, including fallback handling for files that cannot be fully parsed.
  • Vendored and generated files are excluded from dependency analysis.
  • Unknown dependency states are clearly preserved when manifests or repository trees cannot be read.
  • Updated scan warnings and graph summaries provide clearer explanations for incomplete dependency information.
• Bug Fixes
  • Prevented closure-only and stale dependency entries from creating incorrect graph relationships.
