ili9325: add ILI9325 driver for 8-bit parallel displays (#926)

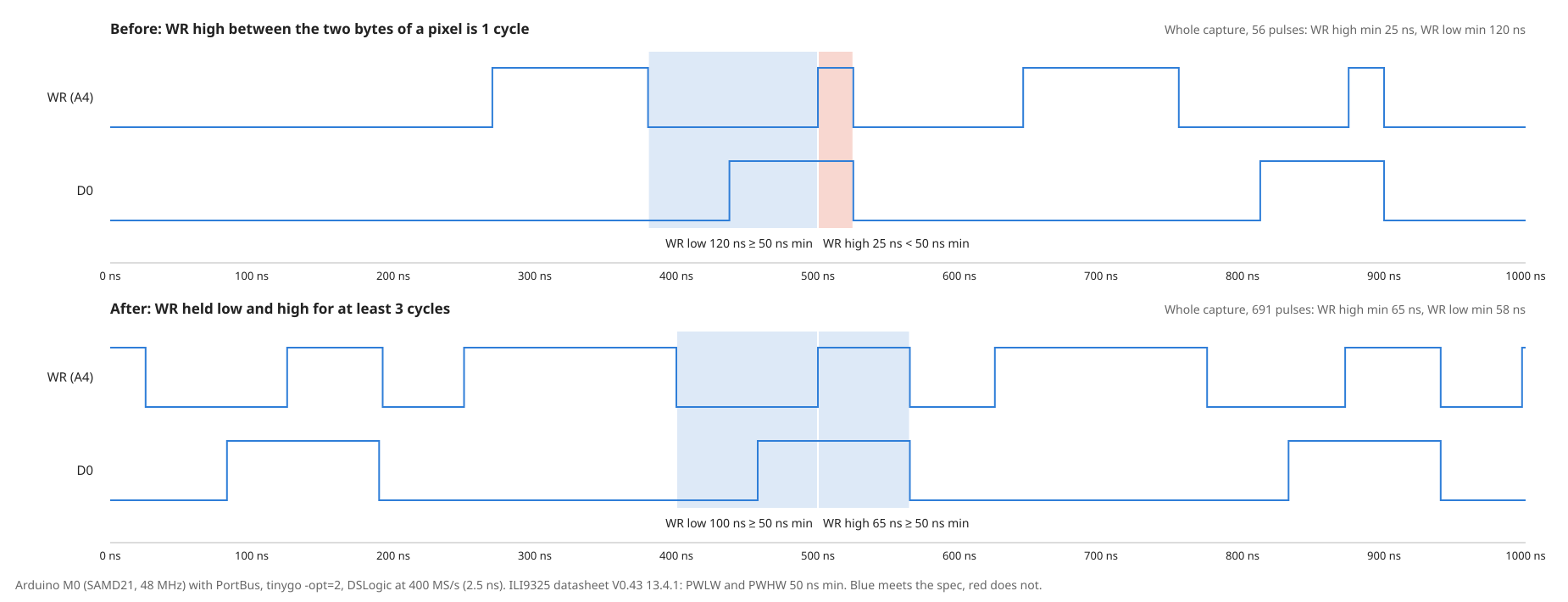

* ili9325: add ILI9325 driver for 8-bit parallel displays This adds a driver for the ILI9325 TFT controller on an 8-bit parallel bus, with an example for the ITead ITDB02-2.8 Arduino shield. * examples/ili9325: add Lorenz attractor example This adds an example that draws the Lorenz attractor on the ITead ITDB02-2.8 shield. * ili9325: keep WR pulses within the datasheet limits Review of #926 asked for ENTRY_MODE to be written once per rotation, for clearer errors and doc comments, and for a check of the WR pulse width against the ILI9325 AC characteristics. The datasheet V0.43 13.4.1 gives PWLW and PWHW 50 ns min. A DSLogic capture at 400 MS/s on an Arduino M0 at -opt=2 showed WR high of 25 ns between the two bytes of a pixel. WR low was in spec. At the default -opt=z each register store is a call, so the pulses were long only by accident. Inline asm padding gives the same minimum at every opt level. After the change the minimums are 58 ns low and 65 ns high. Traces: https://raw.githubusercontent.com/davecheney/tinygo/pr-assets/drivers926-wr-timing.png
